MFC-UT
MFC-UT integrated Compact Mass Flow Meter with Aluminum Gas Seat
PRODUCT OVERVIEW
- Details description
- Specifications
- Applications
-
- 商品名称: MFC-UT integrated Compact Mass Flow Meter with Aluminum Gas Seat
- 商品编号: MFC-UT

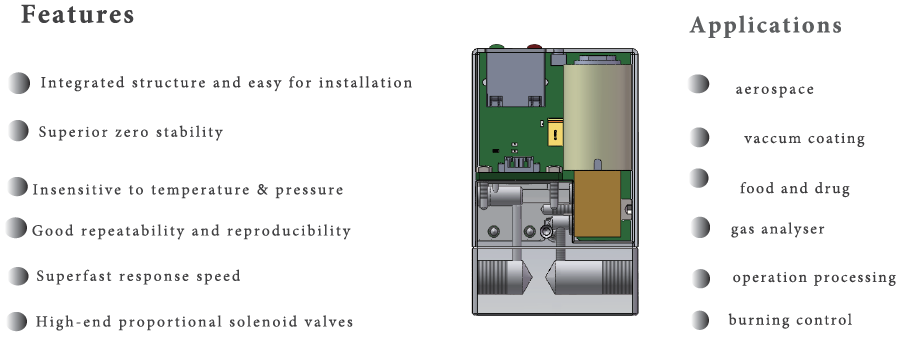

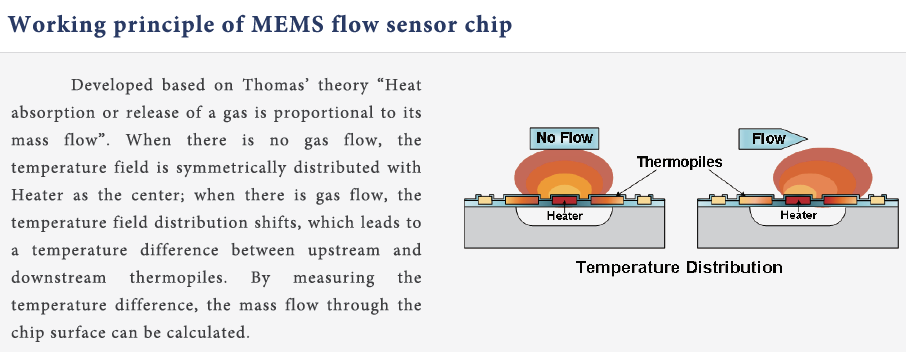

MFC-UT (Mass Flow Controller) series products are integrated and compact, which are based on the advanced industrial flow sensor chip, combined with high-speed digital processing technology and intelligent compensation algorithm. This series product constructed with high-end electromagnetic proportional valve, aviation aluminum alloy gas seat, high accuracy microelectromechanical chips. Compared with traditional mass flow controller, MFC-UT products are with integrated designing, which make the product greatly compact and can be installed in small space and portable devices. This series products are better suitable for limit space installation devices.
- mass flow controller
- MFC
- gas flow measurement
-
Technical specifications
Gas requirements
Clean, dry and no-corrosive gas
Gas
air、N2、Ar、CO2,He, H2,CH4, O2 and so on
Flow range
(0～10, 100, 200, 300, 500) SCCM
(0～1, 2, 3, 5, 10，20) SLM
(based on N2)
Accuracy
0.8%F.S. or 1.0%S.P, which is larger
Turndown ratio
100:1
Leak integrity, outboard
1×10-9 Pa m3/s He
Response time
≤0.5S
Repeatability
±0.2%F.S
Max Pressure
9.8 bar
Environment Conditions
Operating temperature
0~50℃
Operating humidity
10%~90%RH（No frozen and condensation）
Operation pressure
≥ 2slpm, 0.5~4 bar
＜ 2slpm , 0.5~6 bar
Storage temperature
-20~85℃
Electrical specifications
Power supply
DC24V, ripple wave≤50mV
Power dissipation
＜4W
Settling time (in control, typical)
<1s
Electrical connection
Interface type RJ45 Analog control
None
Digital control
RS485

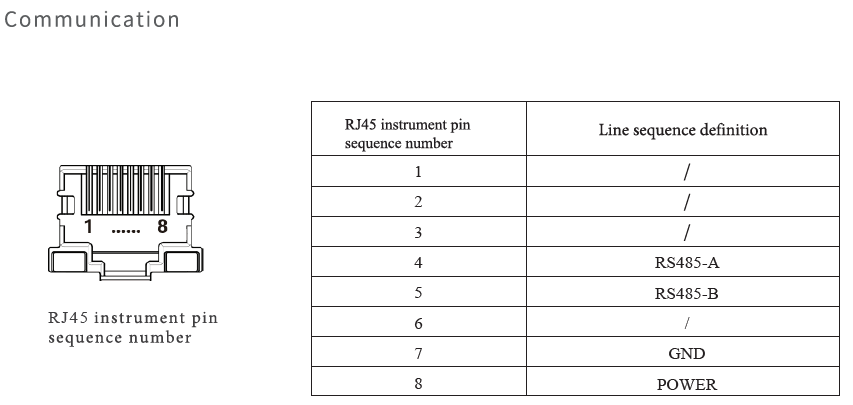

Digital code (RS485)
Interface type RJ45
Communication rate
4800, 9600(default), 14400, 19200, 38400, 56000, 57600, 115200, 128000, 230400, 256000, 460800, 500000
(can be modified by instruction or host computer)
Modbus
RS485(Default is Modbus-RTU，can be customized)
IP
1(default)~250
(can be modified by instruction or host computer)
Nodes
250
Mechanical parts
Fitting type
Tube: 8mm、12mm、3/8inch
Quick coupler：6mm, 8mm
(other types can be optional)
Chip material
Silicon, silicon nitride, silicon carbide, etc
Body material
Seat：aero aluminum
Shell：carbon steel
Sealing
FKM
Weight
0.18kg
-
