MFC-E series

MFC-E Mass Flow Controller Economic-cost and Smart

PRODUCT OVERVIEW

MFC-E (Mass Flow Controller) series products are specially developed for gas analyzer, mass spectrometer, gas distributor and other industries. The product mainly constructed with high accuracy flow sensor, high-end electromagnetic proportional valve, 316 L stainless steel gas seat. MFC-E series are with high accuracy, quick reaction and outstanding stability. Also easy operation, no need for temperature compensation, insensitive to pressure. Input and control signal includes: 0-5 V analog signal and R S 4 8 5 communication formula.
CONTACT US
  • Details description
  • Specifications
  • Applications
    • 商品名称: MFC-E Mass Flow Controller Economic-cost and Smart
    • 商品编号: MFC-E series

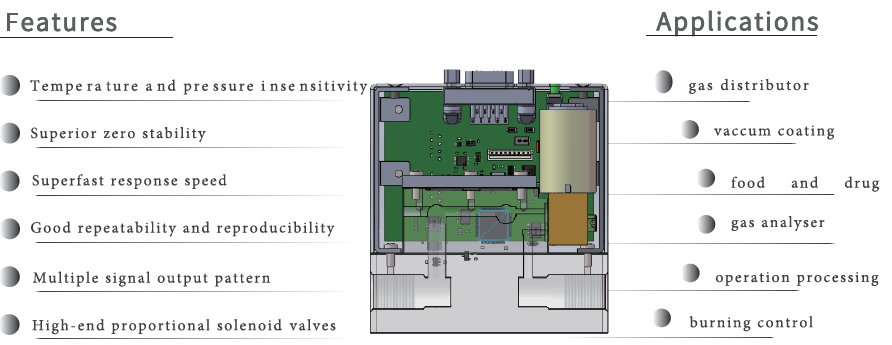

    MFC-E (Mass Flow Controller) series products are specially developed for gas analyzer, mass spectrometer, gas distributor and other industries. The product mainly constructed with high accuracy flow sensor, high-end electromagnetic proportional valve, 316 L stainless steel gas seat. MFC-E series are with high accuracy, quick reaction and outstanding stability. Also easy operation, no need for temperature compensation, insensitive to pressure. Input and control signal includes: 0-5 V analog signal and R S 4 8 5 communication formula.





    • Mass Flow Controller)
    • MFC
  • Technical specifications
    Gas requirements Clean, dry and no-corrosive gas
    Gas airN2ArCO2,He, H2,CH4, O2 and so on
    Flow range

    (010, 100, 200, 300, 500) SCCM

    (01, 2, 3, 5, 1020) SLM
    Accuracy 0.8%F.S. or 1.0%S.P, which is larger
    Turndown ratio 100:1
    Leak integrity, outboard 1×10-9 Pa m3/s He
    Response time ≤0.5S
    Repeatability ±0.2%F.S
    Max Pressure 9.8 bar
    Environment conditions
    Operating temperature 0~50
    Operating humidity 10%~90%RHNo frozen and condensation
    Operation pressure

    ≥ 2slpm, 0.5~4 bar

    2slpm , 0.5~6 bar
    Storage temperature -20~85
    Electrical specifications
    Power supply DC24V, ripple wave≤50mV
    Power dissipation 4W
    Settling time (in control, typical) <1s
    Electrical connection
    Interface type D-SUB9
    Analog control 0~5V4~20mA
    Digital control RS485
    Digital code (RS485)
    Interface type D-SUB9RJ45
    Communication rate

    4800, 9600(default), 14400, 19200, 38400, 56000, 57600, 115200, 128000, 230400, 256000, 460800, 500000

    (can be modified by instruction or host computer)
    Modbus RS485(Default is Modbus-RTUcan be customized)
    IP

    1(default)~250

    (can be modified by instruction or host computer)
    Nodes 250
    Mechanical parts
    Fitting type

    Tube: 8mm12mm3/8inch

    Quick coupler6mm, 8mm

    (other types can be optional)
    Chip material Silicon, silicon nitride, silicon carbide, etc
    Body material

    Seat316L stainless steel

    Shellcarbon steel
    Sealing FKM
    Weight 0.75kg



  •
